SF87DT100LC4詳細信息
SF87DT100LC4
訂購熱線：13360667204
關鍵詞：0.12千瓦變頻減速電機一體機_SF87DT100LC4_SF87DT100LS4
SF87DT100LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF87DT100LC4 | 180.00 | 3KW | 8.10rpm | 2600N.m | 135kg | 27300N | 0.85 |
| SF87DT100LC4 | 151.30 | 3KW | 9.60rpm | 2210N.m | 135kg | 28100N | 0.95 |
| SF87DT100LC4 | 139.05 | 3KW | 10.0rpm | 2050N.m | 135kg | 28400N | 1.00 |
| SF87DT100LC4 | 123.48 | 3KW | 12.0rpm | 1830N.m | 135kg | 28700N | 1.10 |
| SF87DT100LC4 | 110.40 | 3KW | 13.0rpm | 1650N.m | 135kg | 29000N | 1.20 |
| SF87DT100LC4 | 99.26 | 3KW | 15.0rpm | 1490N.m | 135kg | 29200N | 1.30 |
| SF87DT100LC4 | 86.15 | 3KW | 17.0rpm | 1310N.m | 135kg | 29400N | 1.45 |
| SF87DT100LC4 | 81.76 | 3KW | 18.0rpm | 1400N.m | 135kg | 29300N | 1.15 |
| SF87DT100LC4 | 77.14 | 3KW | 19.0rpm | 1180N.m | 135kg | 29500N | 1.55 |
| SF87DT100LC4 | 70.43 | 3KW | 21.0rpm | 1210N.m | 135kg | 29500N | 1.30 |
| SF87DT100LC4 | 64.27 | 3KW | 23.0rpm | 1110N.m | 135kg | 29600N | 1.45 |
| SF87DT100LC4 | 57.00 | 3KW | 26.0rpm | 990N.m | 135kg | 29700N | 1.60 |
| SF87DT100LC4 | 47.91 | 3KW | 30.0rpm | 830N.m | 135kg | 29800N | 1.90 |
| SF87DT100LC4 | 44.03 | 3KW | 33.0rpm | 770N.m | 135kg | 29900N | 2.10 |
| SF87DT100LC4 | 39.10 | 3KW | 37.0rpm | 685N.m | 135kg | 29900N | 2.30 |
| SF87DT100LC4 | 34.96 | 3KW | 42.0rpm | 615N.m | 135kg | 29900N | 2.60 |
SF87DT100LS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF87DT100LS4 | 258.18 | 2.2KW | 5.50rpm | 2700N.m | 132kg | 27000N | 0.85 |
| SF87DT100LS4 | 222.40 | 2.2KW | 6.40rpm | 2360N.m | 132kg | 27800N | 0.95 |
| SF87DT100LS4 | 202.96 | 2.2KW | 7.00rpm | 2170N.m | 132kg | 28100N | 1.05 |
| SF87DT100LS4 | 180.00 | 2.2KW | 7.90rpm | 1940N.m | 132kg | 28500N | 1.15 |
| SF87DT100LS4 | 151.30 | 2.2KW | 9.40rpm | 1650N.m | 132kg | 29000N | 1.30 |
| SF87DT100LS4 | 139.05 | 2.2KW | 10.0rpm | 1530N.m | 132kg | 29100N | 1.35 |
| SF87DT100LS4 | 123.48 | 2.2KW | 12.0rpm | 1370N.m | 132kg | 29300N | 1.50 |
| SF87DT100LS4 | 110.40 | 2.2KW | 13.0rpm | 1230N.m | 132kg | 29500N | 1.60 |
| SF87DT100LS4 | 99.26 | 2.2KW | 14.0rpm | 1120N.m | 132kg | 29600N | 1.75 |
| SF87DT100LS4 | 86.15 | 2.2KW | 17.0rpm | 1050N.m | 132kg | 29700N | 1.90 |
| SF87DT100LS4 | 81.76 | 2.2KW | 17.0rpm | 980N.m | 132kg | 29600N | 1.50 |
| SF87DT100LS4 | 77.14 | 2.2KW | 18.0rpm | 910N.m | 132kg | 29800N | 2.10 |
| SF87DT100LS4 | 70.43 | 2.2KW | 20.0rpm | 880N.m | 132kg | 29800N | 1.75 |
| SF87DT100LS4 | 64.27 | 2.2KW | 22.0rpm | 830N.m | 132kg | 29800N | 1.90 |
| SF87DT100LS4 | 57.00 | 2.2KW | 25.0rpm | 740N.m | 132kg | 29900N | 2.20 |
SF87DT100LC4電機減速機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

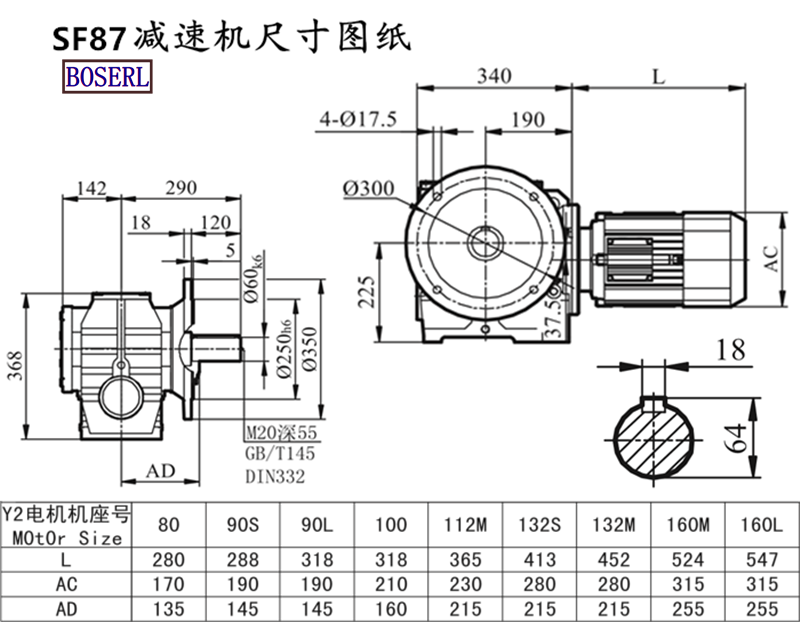

SF87DT100LC4電機減速機安裝尺寸圖紙
SF87DT100LC4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A約
低速大扭矩減速電機應用案例展示：
關鍵詞:SF系列減速機_低速大扭矩減速器與電機_低轉數高扭矩減速電機一套_低速大扭矩減速機_低轉數大扭矩電機_低轉數大功率電機_SF系列減速機生產廠家
SF系列減速機型號：SF37減速機,SF47減速機,SF57減速機,SF67減速機,SF77減速機,SF87減速機,SF97減速機
SF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.12千瓦變頻減速電機一體機 SF87DT100LC4 SF87DT100LS4
