RF27DRN80K4詳細信息
RF27DRN80K4
訂購熱線：13360667204
關鍵詞：2.2KW220伏電機減速機_RF27DRN80K4_RF27DRN80MK4
RF27DRN80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF27DRN80K4 | 39.25 | 0.55KW | 35.0rpm | 149N.m | 20.5kg | 3270N | 0.85 |
| RF27DRN80K4 | 36.79 | 0.55KW | 38.0rpm | 140N.m | 20.5kg | 3230N | 0.95 |
| RF27DRN80K4 | 32.47 | 0.55KW | 42.0rpm | 124N.m | 20.5kg | 3150N | 1.05 |
| RF27DRN80K4 | 28.78 | 0.55KW | 48.0rpm | 110N.m | 20.5kg | 3070N | 1.20 |
| RF27DRN80K4 | 24.47 | 0.55KW | 56.0rpm | 93N.m | 20.5kg | 2960N | 1.40 |
| RF27DRN80K4 | 22.32 | 0.55KW | 62.0rpm | 85N.m | 20.5kg | 2900N | 1.55 |
| RF27DRN80K4 | 19.35 | 0.55KW | 71.0rpm | 74N.m | 20.5kg | 2800N | 1.75 |
| RF27DRN80K4 | 18.08 | 0.55KW | 76.0rpm | 69N.m | 20.5kg | 2750N | 1.90 |
| RF27DRN80K4 | 15.63 | 0.55KW | 88.0rpm | 60N.m | 20.5kg | 2650N | 2.20 |
| RF27DRN80K4 | 13.28 | 0.55KW | 104rpm | 50N.m | 20.5kg | 2540N | 2.60 |
| RF27DRN80K4 | 11.86 | 0.55KW | 116rpm | 45N.m | 20.5kg | 2460N | 2.90 |
| RF27DRN80K4 | 10.13 | 0.55KW | 136rpm | 38N.m | 20.5kg | 2360N | 3.20 |
| RF27DRN80K4 | 9.41 | 0.55KW | 147rpm | 36N.m | 20.5kg | 2280N | 3.40 |
| RF27DRN80K4 | 8.16 | 0.55KW | 169rpm | 31N.m | 20.5kg | 2190N | 3.70 |
| RF27DRN80K4 | 7.63 | 0.55KW | 181rpm | 29N.m | 20.5kg | 2150N | 3.90 |
| RF27DRN80K4 | 6.59 | 0.55KW | 209rpm | 25N.m | 20.5kg | 2070N | 4.20 |
| RF27DRN80K4 | 5.60 | 0.55KW | 246rpm | 21N.m | 20.5kg | 1970N | 4.60 |
| RF27DRN80K4 | 5.00 | 0.55KW | 276rpm | 19N.m | 20.5kg | 1910N | 5.00 |
| RF27DRN80K4 | 4.27 | 0.55KW | 323rpm | 16N.m | 20.5kg | 1820N | 5.30 |
| RF27DRN80K4 | 4.00 | 0.55KW | 345rpm | 15N.m | 20.5kg | 1780N | 5.60 |
| RF27DRN80K4 | 3.37 | 0.55KW | 410rpm | 13N.m | 20.5kg | 1690N | 6.20 |
RF27DRN80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF27DRN80MK4 | 39.25 | 0.55KW | 35.0rpm | 149N.m | 20.5kg | 3270N | 0.85 |
| RF27DRN80MK4 | 36.79 | 0.55KW | 38.0rpm | 140N.m | 20.5kg | 3230N | 0.95 |
| RF27DRN80MK4 | 32.47 | 0.55KW | 42.0rpm | 124N.m | 20.5kg | 3150N | 1.05 |
| RF27DRN80MK4 | 28.78 | 0.55KW | 48.0rpm | 110N.m | 20.5kg | 3070N | 1.20 |
| RF27DRN80MK4 | 24.47 | 0.55KW | 56.0rpm | 93N.m | 20.5kg | 2960N | 1.40 |
| RF27DRN80MK4 | 22.32 | 0.55KW | 62.0rpm | 85N.m | 20.5kg | 2900N | 1.55 |
| RF27DRN80MK4 | 19.35 | 0.55KW | 71.0rpm | 74N.m | 20.5kg | 2800N | 1.75 |
| RF27DRN80MK4 | 18.08 | 0.55KW | 76.0rpm | 69N.m | 20.5kg | 2750N | 1.90 |
| RF27DRN80MK4 | 15.63 | 0.55KW | 88.0rpm | 60N.m | 20.5kg | 2650N | 2.20 |
| RF27DRN80MK4 | 13.28 | 0.55KW | 104rpm | 50N.m | 20.5kg | 2540N | 2.60 |
| RF27DRN80MK4 | 11.86 | 0.55KW | 116rpm | 45N.m | 20.5kg | 2460N | 2.90 |
| RF27DRN80MK4 | 10.13 | 0.55KW | 136rpm | 38N.m | 20.5kg | 2360N | 3.20 |
| RF27DRN80MK4 | 9.41 | 0.55KW | 147rpm | 36N.m | 20.5kg | 2280N | 3.40 |
| RF27DRN80MK4 | 8.16 | 0.55KW | 169rpm | 31N.m | 20.5kg | 2190N | 3.70 |
| RF27DRN80MK4 | 7.63 | 0.55KW | 181rpm | 29N.m | 20.5kg | 2150N | 3.90 |
| RF27DRN80MK4 | 6.59 | 0.55KW | 209rpm | 25N.m | 20.5kg | 2070N | 4.20 |
| RF27DRN80MK4 | 5.60 | 0.55KW | 246rpm | 21N.m | 20.5kg | 1970N | 4.60 |
| RF27DRN80MK4 | 5.00 | 0.55KW | 276rpm | 19N.m | 20.5kg | 1910N | 5.00 |
| RF27DRN80MK4 | 4.27 | 0.55KW | 323rpm | 16N.m | 20.5kg | 1820N | 5.30 |
| RF27DRN80MK4 | 4.00 | 0.55KW | 345rpm | 15N.m | 20.5kg | 1780N | 5.60 |
| RF27DRN80MK4 | 3.37 | 0.55KW | 410rpm | 13N.m | 20.5kg | 1690N | 6.20 |

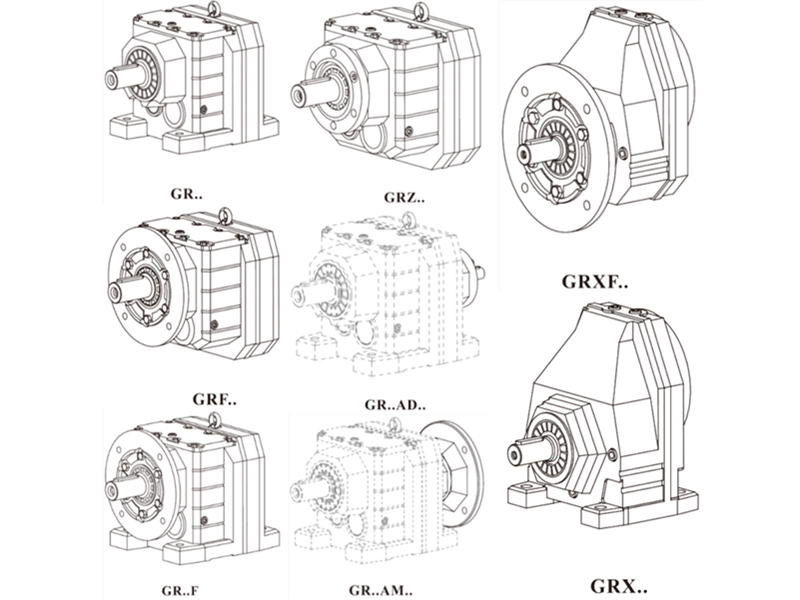

RF27DRN80K4電機減速機類型：
RX27DRN80K4單級底腳安裝斜齒輪減速電機
RXF27DRN80K4單級B5法蘭安裝斜齒輪減速機電機
R27DRN80K4底腳安裝斜齒輪減速電機
R27FDRN80K4底腳、B5法蘭安裝斜齒輪減速電機

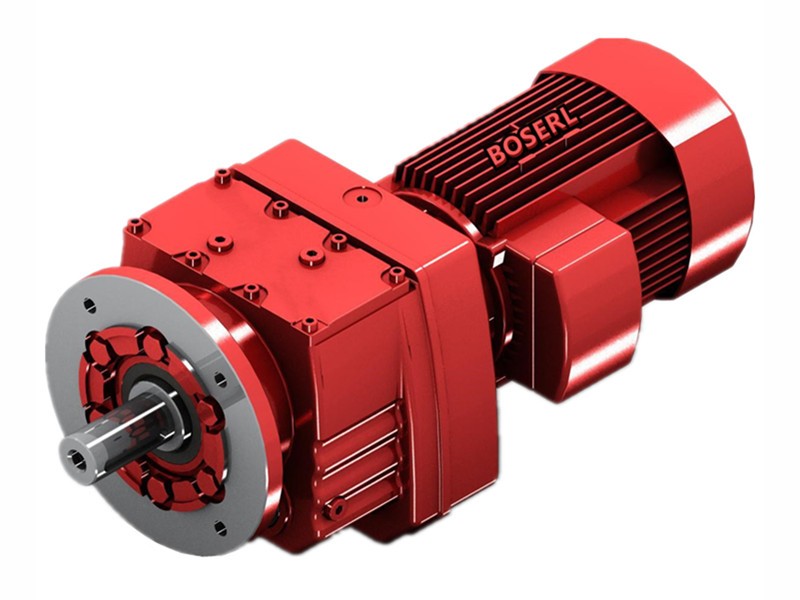

RF27DRN80K4B5法蘭安裝斜齒輪減速電機
RZ27DRN80K4B14法蘭安裝斜齒輪減速電機
RX27DRN80MK4單級底腳安裝斜齒輪減速電機
RXF27DRN80MK4單級B5法蘭安裝斜齒輪減速機電機
R27DRN80MK4底腳安裝斜齒輪減速電機
R27FDRN80MK4底腳、B5法蘭安裝斜齒輪減速電機
RF27DRN80MK4B5法蘭安裝斜齒輪減速電機
RZ27DRN80MK4B14法蘭安裝斜齒輪減速電機

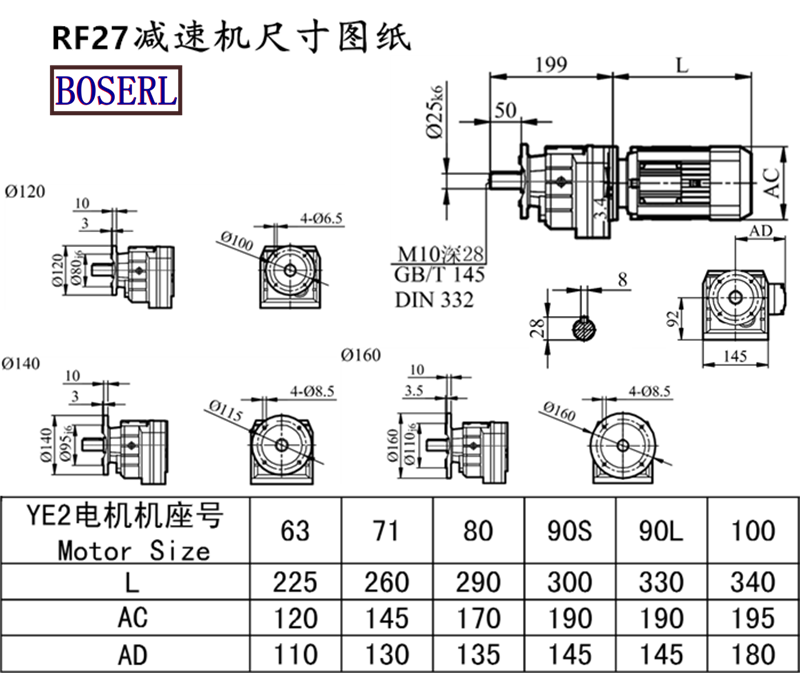

RF27DRN80K4電機減速機安裝尺寸圖紙
RF27DRN80K4電機減速機生產廠家：看廠請?zhí)崆叭祛A(yù)約立式減速機
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 2.2KW220伏電機減速機 RF27DRN80K4 RF27DRN80MK4
